19 Feb 2012

Understanding the JSF Immediate Attribute

There is very common myth among ADF and JSF developers that using Immediate attribute will avoid unnecessary validation in any case. It is only partly true. The myth is growing up because of misunderstanding how the Immediate attribute actually works. Using the attribute without understanding of the mechanism very often lead to bugs and unpredictable behaviour of the application. I hope, this post will be useful for developers to understand and to remember when the Immediate attribute is a good option and when it is not.

I think, we should be aware of the following key points:
  • Processing  of any components with Immediate attribute is moved up to the Apply Request Values phase of the lifecycle. But there is a big difference in processing of editableValueHolder (inputText) and actionSource (commandButton) components.
  • For EditableValueHolder components (like inputText) with Immediate attribute validation and valueChangeEvent delivering are done in Apply Request Values phase instead of usual Process Validation phase. This is the only change. The lifecycle is not stopped, it is going on, there is no any lifecycle phase skipping!
  •  Restore View->Apply Request Values->Process Validations->Update Model->Invoke App->Render Response

  • For ActionSource components (like commandButton) with Immediate attribute, action event is delivered to Apply Request Values phase instead of usual  Invoke Application phase. But!!! After that the lifecycle is jumping to the end, to Render Response phase. Validation and Model Update phases are skipped.
  •   Restore View->Apply Request Values->Render Response

In order to understand how these points actually affect the system's behaviour,  I'm going to have some experiments with very simple form:


And the jspx for the form:

<af:form id="f1">
  <af:inputText label="Label 1" id="it1"
                value="#{TestImmediateBean.firstInputValue}"
                valueChangeListener="#{TestImmediateBean.firstInputListener}"
                binding="#{TestImmediateBean.firstInputText}"/>

  <af:inputText label="Label 2" id="it2"
                value="#{TestImmediateBean.secondInputValue}"
                valueChangeListener="#{TestImmediateBean.secondInputListener}"
                binding="#{TestImmediateBean.secondInputText}"/>

  <af:commandButton text="commandButton 1" id="cb1"
                    actionListener="#{TestImmediateBean.buttonActionListener}"/>
</af:form>

I've added log messages to the valueChangeListeners, setters, and actionListener in order to follow the request process:

private void printCurrenPhaseID() {
  FacesContext fctx = FacesContext.getCurrentInstance();
  Map requestMap = fctx.getExternalContext().getRequestMap();
  PhaseId currentPhase=(PhaseId)requestMap.get("oracle.adfinternal.view.faces.lifecycle.CURRENT_PHASE_ID");
  System.out.println("currentPhase = "+currentPhase);
}


public void firstInputListener(ValueChangeEvent valueChangeEvent) {
    System.out.println("firstInputListener {");
    printCurrenPhaseID();
    System.out.println("NewValue = " + valueChangeEvent.getNewValue());
    System.out.println("}");
}

public void secondInputListener(ValueChangeEvent valueChangeEvent) {
    System.out.println("secondInputListener {");
    printCurrenPhaseID();
    System.out.println("NewValue = " + valueChangeEvent.getNewValue());
    System.out.println("}");
}

public void setFirstInputValue(String firstInputValue) {
    this.firstInputValue = firstInputValue;
    System.out.println("firstInputValue setter {");
    printCurrenPhaseID();
    System.out.println("}");
}

public void setSecondInputValue(String secondInputValue) {
    this.secondInputValue = secondInputValue;
    System.out.println("secondInputValue setter {");
    printCurrenPhaseID();
    System.out.println("}");
}

public void buttonActionListener(ActionEvent actionEvent) {
    System.out.println("actionEventListener {");
    printCurrenPhaseID();
    System.out.println("firstComponentValue = " + firstInputText.getValue());
    System.out.println("secondComponentValue = " + secondInputText.getValue());
    System.out.println("firstModelValue = " + getFirstInputValue());
    System.out.println("secondModelValue = " + getSecondInputValue());
    System.out.println("}");
}

So, Experiment #1. Standard situation, nobody has Immediate attribute:

Immediate

AutoSubmit

Required

FirstInput
false false  false

SecondInput
false  false  false

CommandButton
false  X X

Input values and click the button:

In the system log we can see the following:
firstInputListener {
currentPhase = PROCESS_VALIDATIONS 3
NewValue = 1
}
secondInputListener {
currentPhase = PROCESS_VALIDATIONS 3
NewValue = 2
}
firstInputValue setter {
currentPhase = UPDATE_MODEL_VALUES 4
}
secondInputValue setter {
currentPhase = UPDATE_MODEL_VALUES 4
}
actionEventListener {
currentPhase = INVOKE_APPLICATION 5
firstComponentValue = 1
secondComponentValue = 2
firstModelValue = 1
secondComponentValue = 2
}

Everything is good. ValueChangelisteners are delivered to the Process Validation phase, setters are fired at the Update Model phase and actionListener is delivered to the Invoke Application phase.

Experiment #2. FirstInput  has Immediate attribute:

Immediate

AutoSubmit

Required

FirstInput
true false  false

SecondInput
false  false  false

CommandButton
false  X X

And the log:
firstInputListener {
currentPhase = APPLY_REQUEST_VALUES 2
NewValue = 1
}
secondInputListener {
currentPhase = PROCESS_VALIDATIONS 3
NewValue = 2
}
firstInputValue setter {
currentPhase = UPDATE_MODEL_VALUES 4
}
secondInputValue setter {
currentPhase = UPDATE_MODEL_VALUES 4
}
actionEventListener {
currentPhase = INVOKE_APPLICATION 5
firstComponentValue = 1
secondComponentValue = 2
firstModelValue = 1
secondComponentValue = 2
}

Note, that valueChangeListener for the FirstInput was delivered to Apply Request Value phase (because of Immediate). All other phases don't have any changes.

Experiment #3. CommandButton has Immediate attribute:

Immediate

AutoSubmit

Required

FirstInput
false false  false

SecondInput
false  false  false

CommandButton
true X X

And the Log:
actionEventListener {
currentPhase = APPLY_REQUEST_VALUES 2
firstComponentValue = null
secondComponentValue = null
firstModelValue = null
secondComponentValue = null
}


ValueChangeListeners and setters are not fired at all! Component values and Model values are null. They should be updated in Process Validations and Update Model phases, but they were skipped (key point #3). Very predictable result.


Experiment #4. FirstInput and CommandButton have Immediate attribute:

Immediate

AutoSubmit

Required

FirstInput
true false  false

SecondInput
false  false  false

CommandButton
true X X

And the Log:
firstInputListener {
currentPhase = APPLY_REQUEST_VALUES 2
NewValue = 1
}
actionEventListener {
currentPhase = APPLY_REQUEST_VALUES 2
firstComponentValue = 1
secondComponentValue = null
firstModelValue = null
secondComponentValue = null
}

This is very important! Process Validations and Update Model phases are skipped as in the previous experiment because commandButton has Immediate , but valueChangeListener for FirstInput is fired because it has Immediate as well (key point #2). And value of the component (RichInputText) is updated too. So, when you click the "Immediate" button, valueChangeListeners for every "Immediate" input fire as well. Be aware of that! I've recently fixed some bug connected with that. And vice-versa, if you need in an actionListener of the "Immediate" button any components' values, set their Immediate to true.
What do you think will happen if Required of the FirstInput is set true?!

Experiment #5. FirstInput and SecondInput are required. FirstInput and CommandButton have Immediate attribute:

Immediate

AutoSubmit

Required

FirstInput
true false  true

SecondInput
false  false  true

CommandButton
true X X

Let's leave inputs empty and click the button. In this case we don't have any log, we have the following:

Note! The button has immediate attribute set to true, but validation is failed. Because validation process for the FirstInput is moved up to Apply Request Values (Key Point #2). The myth is busted! On the other hand, the SecondInput is required as well, but there is no any problem with its validation. The SecondInput is not Immediate. It was going to be validated at Process Validation phase, but the phase was skipped because of Immediate button (Key Point #3). So, the myth is partly true :).

Experiment #6. FirstInput is autoSubmit. SecondInput is a partial target for the FirstInput:

Immediate

AutoSubmit

Required

FirstInput
true true true

SecondInput
false  false  true

CommandButton
true X X

Let's input something into the FirstInput and press Tab. We have validation exception:

 Note! The FirstInput is Immediate, but we still have the exception. The myth is busted again. Processing of editableValueHolder components does not  skip Process Validation phase.  It doesn't skip any phase at all. (Key Point #2)
How to avoid this exception? We have to move up the lifecycle to the end manually. In the valueChangeListener we add the following:

 public void firstInputListener(ValueChangeEvent valueChangeEvent) {
    System.out.println("firstInputListener {");
    printCurrenPhaseID();
    System.out.println("NewValue = " + valueChangeEvent.getNewValue());
    System.out.println("}");
    //Jump to the Render Response phase
    FacesContext.getCurrentInstance().renderResponse();
}

And the exception's gone.

So, in order to use the Immediate attribute properly, remember three key points mentioned at the beginning of the post.


You can download my sample application and play with your own experiments.

Thank you!


5 Feb 2012

Handling key modifiers for client events

In this post I'm going to show how we can check and use the key modifier flags for client components events. The flags indicate which combination of CTRL, SHIFT and ALT keys was pressed. Let's say we have some commandButton and we need to handle if Shift key is hold down on the mouse click event.

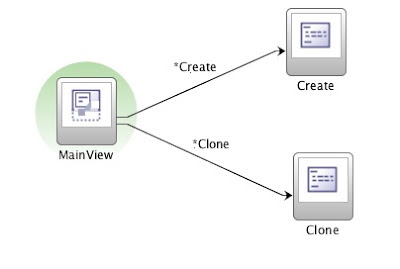

We have the following task flow:

If Shift key is hold, the button will produce *Clone action, if not the button will produce *Create  action. In our MainView we have a button:

        <af:commandButton text="commandButton 1" id="cb1">
          <af:clientListener method="handleBtnClick" type="click"/>
          <af:serverListener type="hanldeAction"
                             method="#{MainHandlerBean.actionEvent}"/>
        </af:commandButton>

It has clientListener pointing to JS function handleBtnClick and it has serverListner pointing to the backing bean method actionEvent. JS function is triggered on click event and it looks as following:

           function handleBtnClick(evt) {
              //evt is AdfDomUIInputEvent
              //we need to get native DOM event
              //because it has modifiers properties

              var nativeEvent = evt.getNativeEvent();

              //Invoking server listener and passing if Shift key is pressed
              //as a parameter to the MainHandlerBean.actionEvent method.
              //In our case we check shiftKey property
              //Actually it can be shiftKey, ctrlKey, altKey

              AdfCustomEvent.queue(evt.getSource(), "hanldeAction",
                                  {shiftKey:nativeEvent.shiftKey} ,false);
              event.cancel();
           }

The backing bean method looks like this:
    public void actionEvent(ClientEvent clientEvent) {
        //Checking the parameter passed from the client
        if ((Boolean) clientEvent.getParameters().get("shiftKey"))
            HandleNavigation("*Clone");
        else
            HandleNavigation("*Create");

    }

    public static void HandleNavigation(String outcome)
    {
      FacesContext context = FacesContext.getCurrentInstance();
      NavigationHandler nh = context.getApplication().getNavigationHandler();
      nh.handleNavigation(context, "", outcome);
    }

That's it.
